| Ref. No. |
Description |
Function |

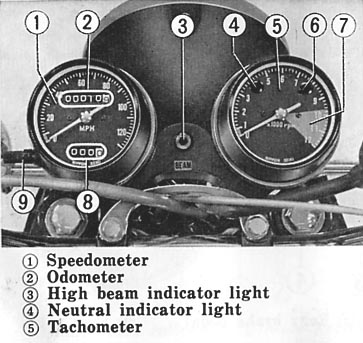

| 1. |
Speedometer |
Indicates the
bike's road speed. |
| 2. |
Odometer |
Indicates total
accumulated distance travelled. |
| 3. |
High beam indicator
light |
The light glows
when the headlight is on (red)
- high beam. |
| 4. |
Neutral indicator
light (green) |
The light glows
when the transmission is in neutral. |
| 5. |
Tachometer |
Indicates engine
rpm. |
| 6. |
Turn signal indicator
light (amber) |
The light flashes,
when turn signal light is
operating. |
| 7. |
Tachometer red
zone |
During acceleration,
engine revolution may enter the red zone from time to time. However,
the motorcycle should not be operated in the red zone for long
time and should not be operated beyond it. |
| 8. |
Trip-meter |
Indicates distance
traveled. |

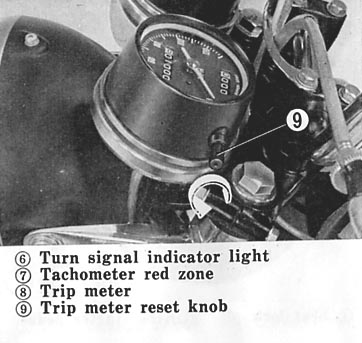

| 9. |
Trip-meter reset
knob |
Reset the trip-meter
to zero (0) by turning the trip-meter reset knob |
