Headlight Control Switch
The headlight control switch (3) is located on the right handle grip switch housing. It can be operated without taking the hand off the handle grip. The red dot is the off position (headlight and tail-light off). "L" is the low beam position (low beam light and tail-light on). "H" is the high beam position (high beam light and tail-light on). The headlight will only operate when the main switch is in the on position.

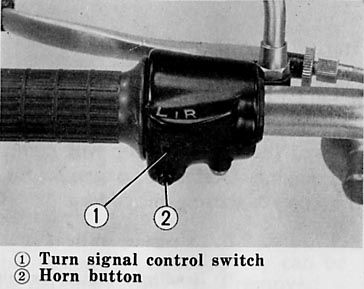

The turn signal control switch (1) is located on the left handle grip switch housing. It can be operated without taking the hand off the handle grip. To signal a left turn move the switch knob to the "L" position. To signal a right turn move the switch knob to the "R" position. When the turn has been completed the switch knob must be returned to the off (center) position.
Horn Button
The horn button (2) is located directly below the turn signal control switch. While the horn button is depressed the horn will operate.
